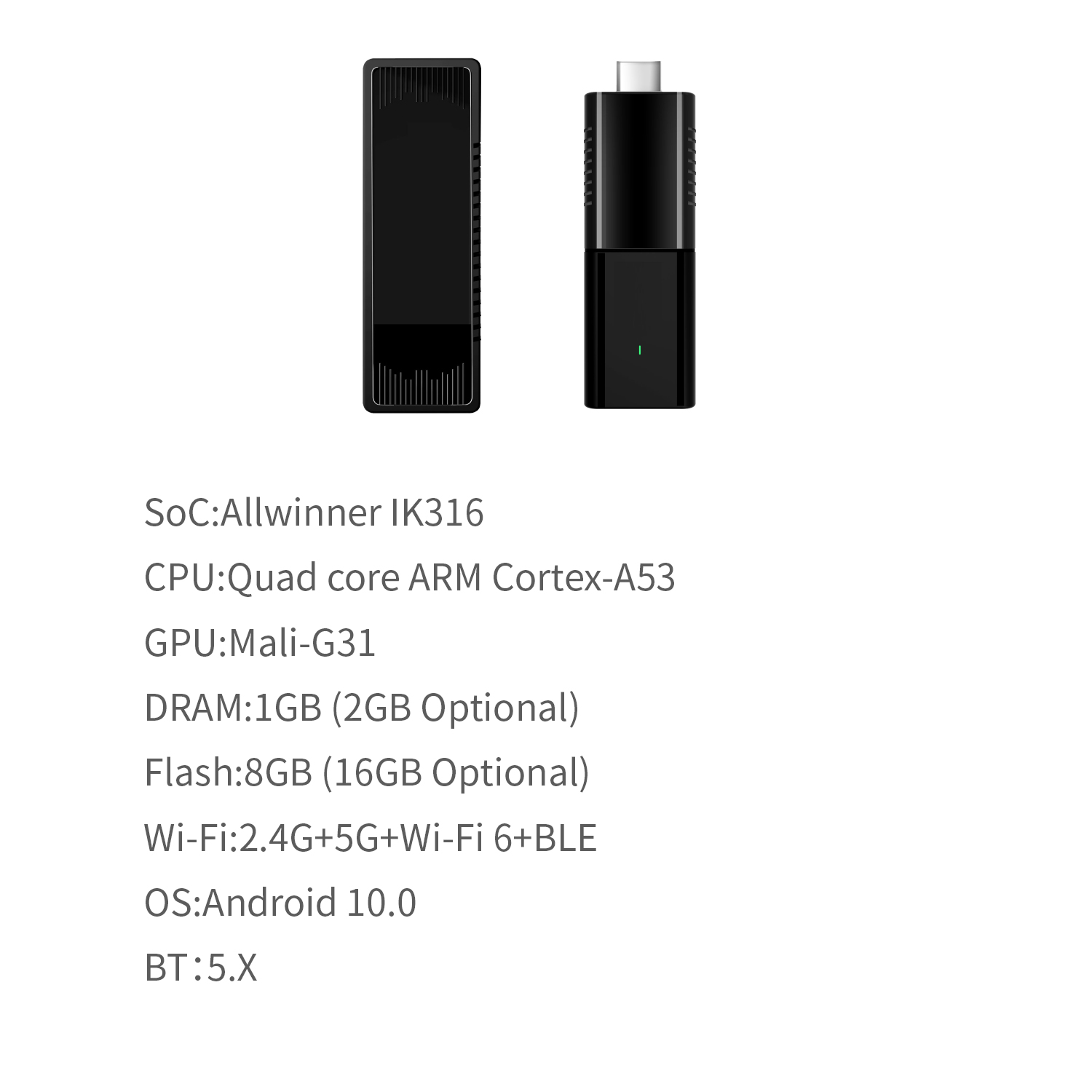

SoC: Allwinner IK316
DRAM: 64bit LPDDR4 1GB (2GB Optional)
"Flash: EMMC 8GB
(16GB Optional)"
OS: Android 10.0
SV6256P Wi-Fi 2.4G+5GHz 802.11 a/b/g/n
TV Stick R3 Products
Factory direct sale
Product center
Product center
INNOVATION/QUALITY/COST/SERVICE
Product profile
Product parameters
| Basic parameters | ||
| System | SoC:Allwinner IK316 | |
| CPU: Quad core ARM Cortex-A53 | ||
| GPU: Mali-G31,OpenGL3.2,Vulkan1.1,OpenCL2.0 | ||
| EMCP: DDR3 1GB (2GB 4GB Optional)，EMMC 8GB (16GB Optional) | ||
| OS: Android 10.0 | ||
| Network | RJ45:NC | |
| Wi-Fi:Wi-Fi 2.4G+5GHz | ||
| BT: BT5.X | ||
| I/O | ||
| Video/Audio Input | HDMI 2.0a | |
| Peripheral Interface | USB2.0 HOSTx1， TFx1，Micro USBx1， | |
| Power Interface | TYPE-C 5V@2A， | |
| Other Interface | Mini USB to IR receiver, LED indicator | |
| Media | ||
| Video | Video decoder: H.265 MP@L6.1 10-bit decoder up to 8K@22fps; VP9 Profile 2 decoder up to 4K@30fps; AVS2 JiZhun 10-bit decoder up to 4K@60fps; H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps; Multi-format 1080p@60fps video playback formats,including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL,MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun,WMV9/VC1, etc | |
| Format: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional ) | ||
| Audio | Format: MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. | |
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation | |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF | |
| Features | ||
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming | |
| Multi-screen interactive | Miracast, DLNA and Airplay | |
| System Upgrading | Upgrading via USB disk or internet | |
| Local Media Playback | Video/Audio/Picture | |
| External Storage | USB storage max to 32GB (FAT16/FAT32/NTFS) | |
| Games | Android 2D/3D games | |
| APP | KODI(XBMC),Facebook, YouTube, Skype, Google play etc. | |
| Other parameters | ||
| Power Consumption | ||
| Operation Temperature | 0~40℃, Humidity<95% | |
| Physical characteristics | Item size: | |
| Packing size： | ||
| Weight: | ||
| Pcs/Carton ： | ||
| N.W: G.W: | ||
| Material: plastic | ||
| Proposed Accessory | Power Adapter, HDMI cable, Optional:Remote control and Battery, User manuale | |
